Available Sizes
- 3′ x 6′
- 3′ x 8′
- 4′ x 8′
- 4′ x 10′
- 4′ x 12′
- 5′ x 10′
- 5′ x 12′
- 5′ x 14′
- 6′ x 12′
- 6′ x 14′
- 6′ x 16′
Custom Sizes also available
Deck Options
- Expanded Metal Mesh (raised or flattened)
- Solid Sheet Steel
- Checker Plate
- Perimeter Lip Around Wagon Faces Up – Standard
- Perimeter Lip Down – Optional

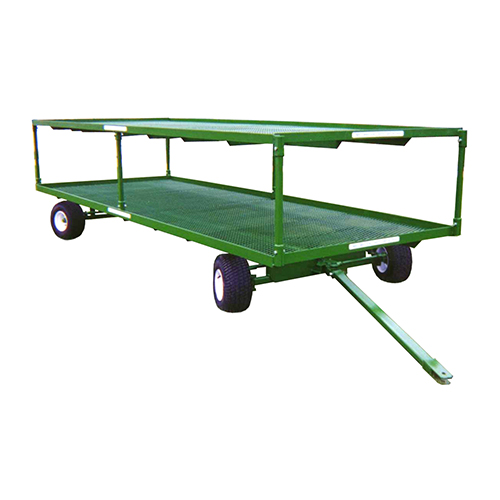

Second Deck
- For Multi Levels
- Standard 24″ Between Decks
- Optional – Removable Shelf Combination
What Are They Made From
All Steel Construction
All Steel Construction
Tongue
Standard 5′ Long With Pin Hitch
Standard 5′ Long With Pin Hitch
Finish Options
- Hot Dip Galvanized
- Primed and Painted
Wheels And Hubs
- Standard – 5 Bolt Rim And Hub With Tire (6 PLY) 8.5″ x 8″ x 18″ Rated At 2500 lbs.
- Ask us which rim, hub and tire combinations are best suited in your environment
Capacity
- Standard – 3000 lb. Capacity (Distributed Load)
- Optional – 6000 lb. Capacity (Distributed Load)
- Custom Design Available For Other Load Requirements
Special Features
- King Pin Steering (Canadian Patent #CDN 2,360,469) (United States Patent #US 6,619,680 B2)
- High Ground Clearance
- Articulated Axle
- Tow Many Wagons In A Train
- Multi Level Decks (optional)
- Low Bed – Deck is 21″ Above Ground
